Ambiance – LUXUS 32 Bay

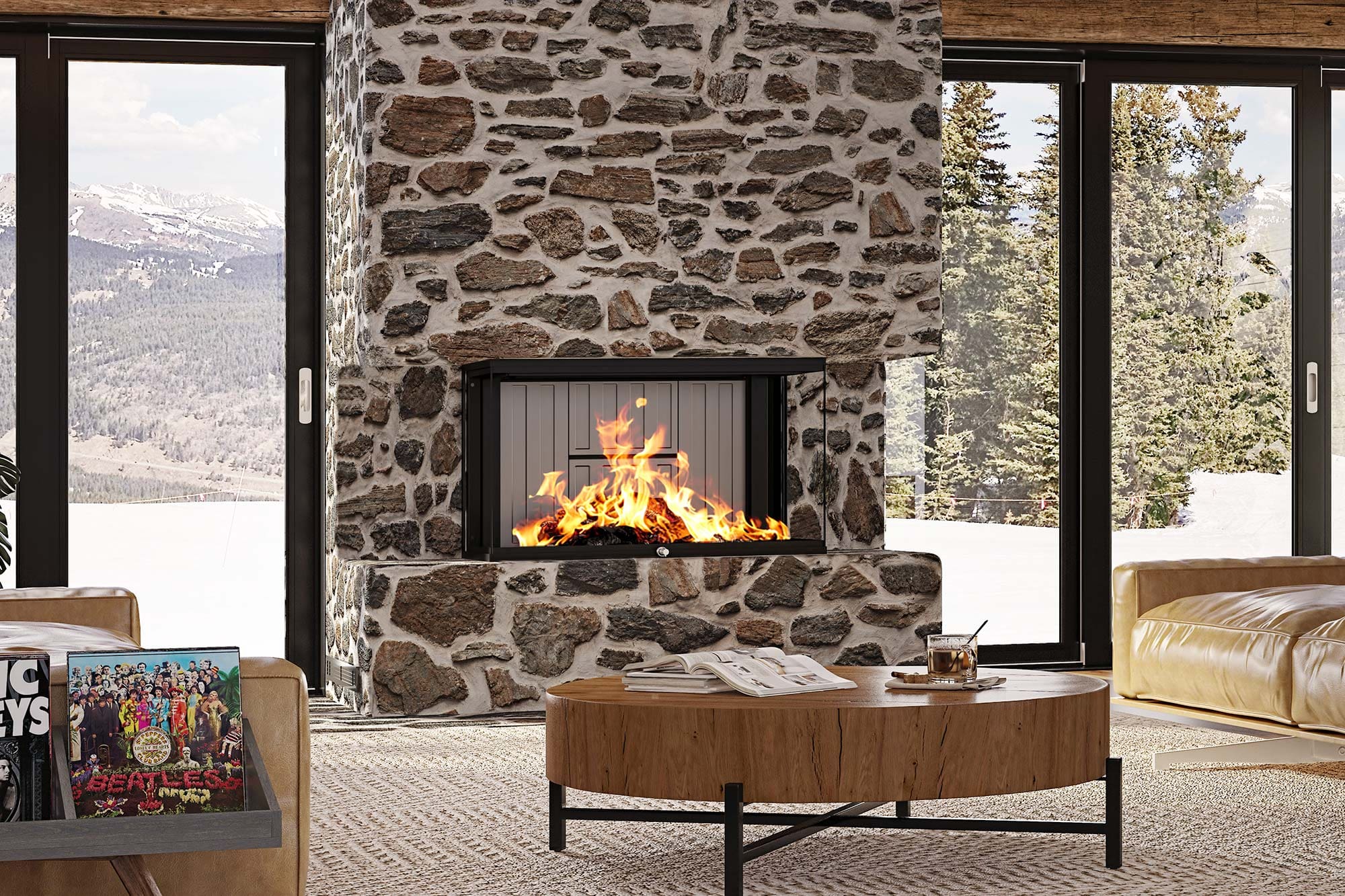

The LUXUS 32 Bay is going to transform your home and sooth the souls of all who are living there. Enjoy the flames from nearly anywhere in the room thanks to this “bay” configurated fireplace that presents the fascination of fire on three sides. A larger piece of glass in the front, with two smaller pieces on either side. With its BTU output of up to 40000 BTU, this luxurious decorative fireplace will warm up and charm everyone in the room.
Technical Details
Power
|
Cordwood Up To 40 000 BTU |
EPA EPA Exempt |
||
---|---|---|---|---|
Dimensions
|
Full Viewing Dimensions 39″W x 22 15⁄16“H x 19 11⁄16“D |
Overall 39″W x 67 1⁄8“H x 28 1⁄4“D |
Weight 617 lbs |
|
Guillotine Glass Door
|
Shape Bay |
Left / Right Pane 14 5⁄16“W x 19 5⁄8“H (280,88 sq.in.) |
Front Pane 31 3⁄16“W x 19 5⁄8“H (612,05 sq.in.) |
|
Firebox
|
Cubic Foot 4.38 Cu. Ft |
Log Length 20″ Logs |
Lining Chamotte |
|
Mantel Shelf Clearances
|
Combustible Mantel Shelf 6-inch Shelf: 19″ |
Ambiance® Non-Combustible Mantels No Clearance required |
||
Venting
|
TYPE Class A |
Diameter 10″ |
Min. / Max. Height 15 / 45 Feet |
Brands Selkirk, Security Chimneys, ICC RIS |
Air Circulation
|
Required Hot Air Gravity Kit |
Product Request Quote Form
Additional information
Brand | Ambiance |
---|---|
Product Type | Fireplace |
Fuel Type | Wood |
